Aston Bay Announces Initial Assays Confirming Thick Intervals of Copper Mineralization at the Storm Copper Project, Nunavut

May 23, 2023
  • Assays have been received for drill hole SR23-01, confirming a total of 28.9m of high-grade copper mineralization, comprising:
    • 15.2m* @ 1.2% Cu, including 4.6m @ 2.8% Cu from 54.9m, and;
    • 7.6m* @ 1.2% Cu, including 3.1m @ 2.4% Cu from 79.3m, and;
    • 6.1m* @ 1.1% Cu, including 3.1m @ 1.4% Cu from 120.4m
      (*downhole length)

  • Another eight Reverse Circulation (RC) drill holes have been completed at the 4100N Zone with all drill holes intersecting thick intervals of strong visual copper sulfide mineralization
  • The recent drilling at the 4100N Zone has defined strong near-surface copper mineralization over 850m x 300m and remains open along strike
  • RC drilling continues at Storm with further drill holes added to the resource definition program at the 4100N Zone
  • All current drill samples have been sent to the laboratory for analysis


Aston Bay Holdings Ltd. (TSXV: BAY) (OTCQB: ATBHF) ("Aston Bay" or the "Company”) reports initial assay results confirm thick intervals of copper mineralization from its ongoing delineation drilling program at the Storm Copper Project (“Storm” or the “Project”) on Somerset Island, Nunavut, Canada. This is the second drilling program for American West Metals Limited (“American West”), who are the project operator, since entering an option agreement with Aston Bay in March 2021.

“Impressive results continue to come in from the ongoing exploration conducted by our partner American West Metals at Storm,” stated Thomas Ullrich, CEO of Aston Bay.

“These assay results from the first reverse circulation drill hole of the season confirm the presence of significant copper mineralization, exceeding the initial visual estimates. This increases our confidence in both the core logging and our assumptions on the continuity of the mineralization at the 4100N Zone.

“We look forward to continuing good news from the results of the ongoing drilling, as well as from the interpretation of the recently completed geophysical programs now being processed.”

Assay results have been received for drill hole SR23-01, the first hole of the current program, and confirm the presence of thick intervals of near-surface copper sulfides. The assays indicate that the mineralized intervals in SR23-01 have exceeded our visual estimations as reported in the Company’s May 9th, 2023, press release.

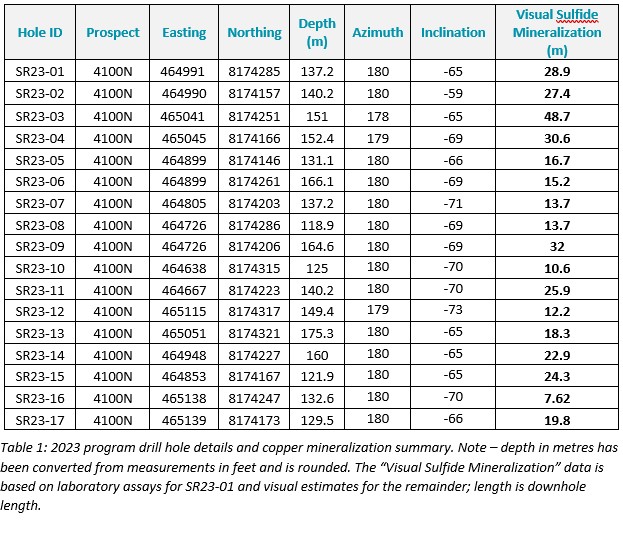

The drilling program is ongoing and continues to intersect significant lengths of visual copper sulfide mineralization within the central and western portion of the known mineralized zone at the 4100N Zone (see Table 1). Due to continuing success and an expansion of the mineralized footprint, further drill holes have been added to the 4100N Zone program.

Visual estimates of mineral abundance should never be considered a proxy or substitute for laboratory analyses where concentrations or grades are the factor of principal economic interest. Laboratory assays are required to determine the presence and grade of any contained mineralization within the reported visual intersections of copper sulfides. Portable XRF is used as an aid in the determination of mineral type and abundance during the geological logging process.


The assay results from drill hole SR23-01 have been received and confirm the intersection of thick intervals of near-surface copper sulfides (Figure 1).

The assayed intervals of SR23-01 closely match and exceed the intervals that were identified visually, validating the classification of strong visual copper sulfides (estimated to be >1% Cu) during the logging process.

Figure 1: Geological section view at 465,000E showing the interpreted mineralization envelope (>1% Cu) and recent drill hole assays and visual observations. Stated diamond drill hole intersections (light blue text boxes) and RC dill hole intersections (dark blue text boxes) are all core/downhole length, and true width is expected to be 60% to 95% of stated length.



SR23-01 was drilled to a downhole depth of 137.2m and was the first drill hole completed in the 2023 drill program. The drill hole forms part of a program that is designed to determine the resource potential of the near-surface 4100N Zone (Figure 2 & 3).

The drill hole is located in the central portion of the 4100N Zone and was designed to test the continuation of the mineralization between two historical drill holes, ST97-13 and ST00-63 (Figure 1).

SR23-01 intersected three zones of vein and fracture-style copper sulfide mineralization interpreted to be near horizontal and hosted within fractured dolomite.

The sulfide abundance and grade of the mineralized intervals within SR23-01 are very similar to that of the historical drill holes along section 465000E. This demonstrates good lateral continuity of the mineralized zones and is a positive outcome for the resource potential at the 4100N Zone.


Figure 2: 3D orthographic view of the 4100N Zone, Storm Project, showing drilling (completed and planned) and the interpreted >1% mineralization envelope defined in drilling. Stated diamond drill hole intersection is core length, and true width is expected to be 60% to 95% of stated length.


Table 2 below summarises the significant intersections from drill hole SR23-01. Intersections are expressed as downhole widths and are interpreted to be approximately 90% of true width. A cut-off grade of 0.5% copper is used to define a significant intersection and is based on sulfide mineralogy, mineralization habit and expected beneficiation performance.



Eight additional drill holes have been completed at the 4100N Zone and continue to highlight the significant resource potential of the near-surface mineralization at Storm. Every drill hole to date within the current program (17 drill holes) has intersected thick intervals of visual sulfides, which have been confirmed to contain copper based on portable XRF analysis.

The mineralized footprint at the 4100N Zone has been shown by historical drilling to extend over an area of approximately 32 hectares. The Company considers that there is an outstanding opportunity to define a significant near-surface resource base that could support an initial low-cost, open-pit mining operation.

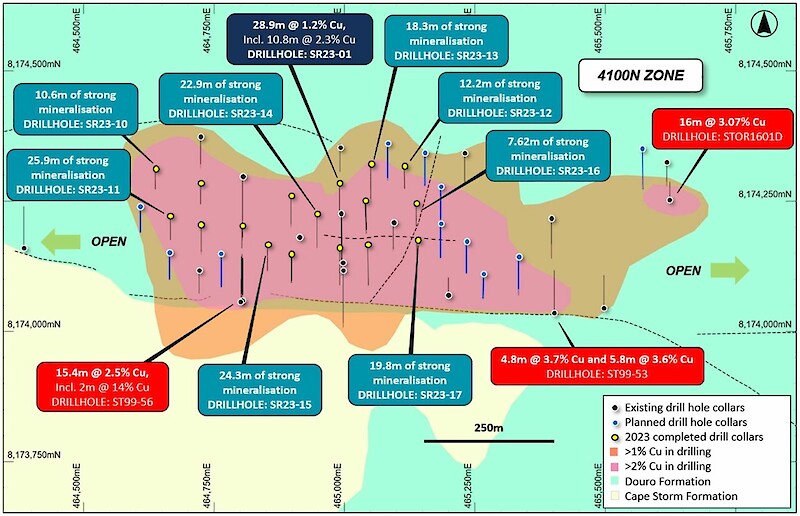

Figure 3: Plan view of the 4100N Zone showing interpreted copper mineralization footprint (defined by historical drilling and EM), historical and recent drilling, overlaying regional geology.  Stated diamond drill hole intersections (red text boxes) and RC dill hole intersections (blue text boxes) are all core/downhole length, and true width is expected to be 60% to 95% of stated length.

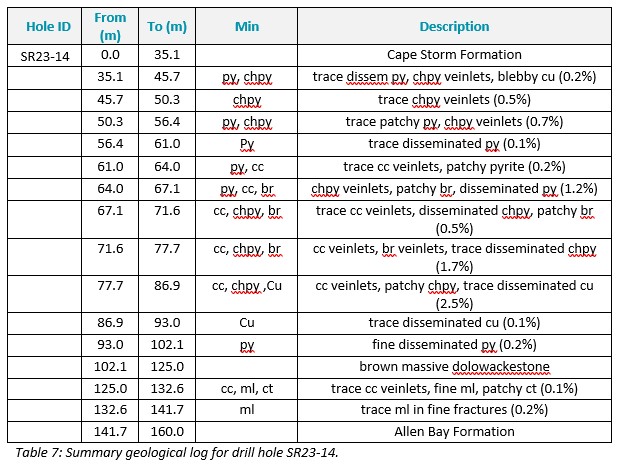

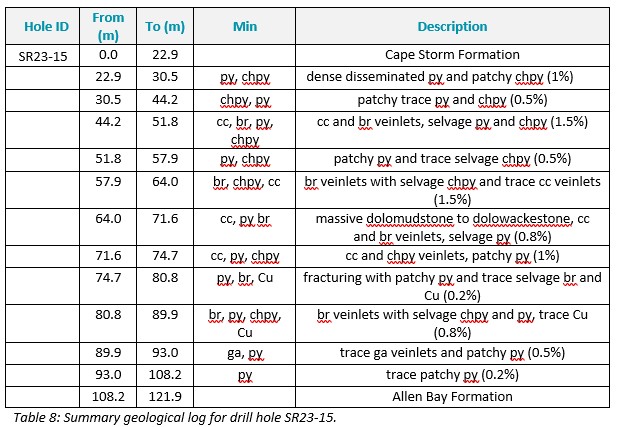

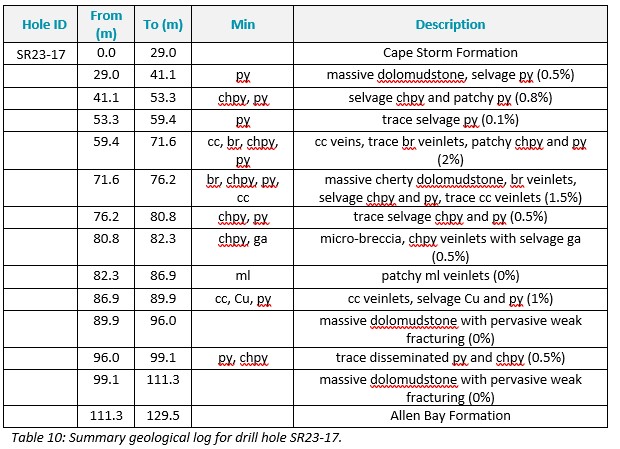

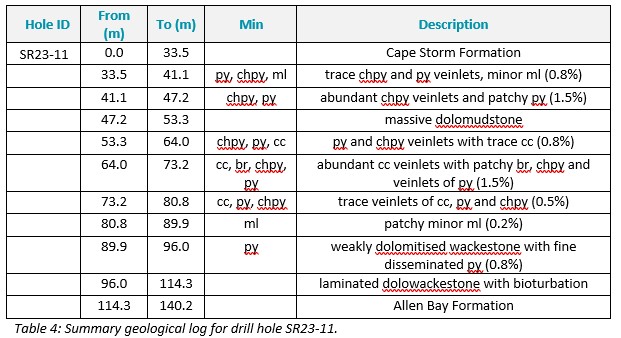

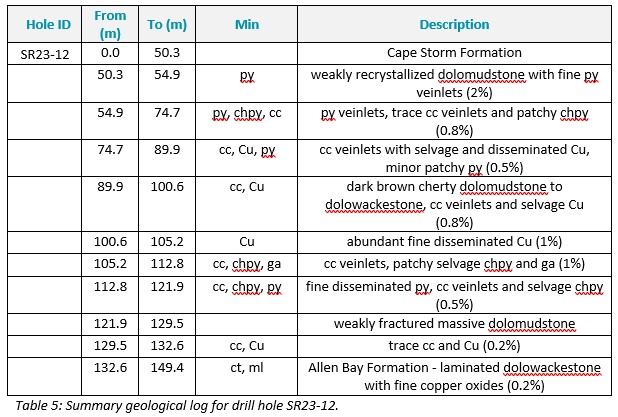

The latest drill holes (SR23-10, SR23-11, SR23-12, SR23-13, SR23-14, SR23-15, SR23-16 and SR23-17) have continued to intersect thick intervals of copper sulfide mineralization within the central and western parts of the 4100N Zone.

The mineralization is visually similar to the previous drill holes completed in the current program and is characterized by thick zones of strong copper sulfide mineralization within a broad mineralized package of vein, fracture and disseminated style mineralization. The mineralized horizons are relatively flat lying, laterally extensive in nature and remain open along and across strike.

Only the stronger visual mineralization has been reported in Table 1.

The dominant copper sulfide minerals observed within the drill holes to date are chalcocite, with chalcopyrite and bornite also present in abundance. Minor native copper and copper oxides (mostly malachite and cuprite) are also present.

The copper mineralization is hosted within distinctive horizons of the Allen Bay Formation, which is comprised of massive to thinly bedded dolomicrites.

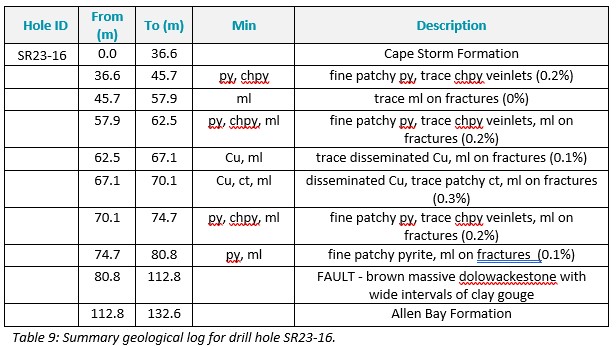

Drill hole SR23-16 has intersected copper sulfide mineralized rocks of the Allen Bay Formation which are cut by a large fault in the lower portion of the drill hole. The interpreted fault consists of clay and fractured dolomudstone and is evident in the geophysical data as a north-south orientated feature. The mineralized copper horizons are continuous either side of the fault.



Intersections below are expressed as downhole lengths and are interpreted to be close to true widths. Visual estimates of sulfide type, quantity and habit should not be considered a substitute for laboratory assays. Portable XRF analysis has been used to confirm the nature of the sulfide intercepts. Laboratory assays are required to determine the widths and grade of mineralization as reported in preliminary geological logging.


Mineralization key: cc = chalcocite, chpy = chalcopyrite, br = bornite, py = pyrite, Cu = native copper, ct = cuprite, ml = malachite, sph = sphalerite, ga = galena. (5%) = visual estimation of sulfide content.



  • Drilling at the 4100N Zone continues, with further drill holes added to the initial program to follow up open areas and to expand the mineralized footprint. This program will be followed by resource definition drilling at the 2200N and 2750N Zone, where the 2022 drill program intersected high-grade copper sulfides close to surface including 41m (core length) @ 4.18% Cu from 38m (ST22-05) downhole.
  • A third batch of drill samples has been sent to the laboratory, with results expected within 4-5 weeks.
  • Processing and interpretation of the moving loop electromagnetics (MLEM) and gravity geophysical survey data is continuing. Diamond drilling will be used to test new high-priority exploration targets identified from these surveys; the core drilling is expected to commence after the completion of the resource drilling.
  • Sorting and beneficiation test work for a potential direct shipping product operation is continuing with results to follow shortly.
  • Environmental baseline surveys will begin in the Storm area during Q3 2023.


About the Storm Copper and Seal Zinc-Silver Projects, Nunavut

The Nunavut property consists of 173 contiguous mining claims covering an area of approximately 219,257 hectares on Somerset Island, Nunavut, Canada. The Storm Project comprises both the Storm Copper Project, a high-grade sediment hosted copper discovery (intersections including 110m* @ 2.45% Cu from surface and 56.3m* @ 3.07% CU from 12.2m) as well as the Seal Zinc Deposit (intersections including 14.4m* @ 10.58% Zn, 28.7g/t Ag from 51.8m and 22.3m* @ 23% Zn, 5.1g/t Ag from 101.5m). Additionally, there are numerous underexplored targets within the 120-kilometre strike length of the mineralized trend, including the Tornado copper prospect where 10 grab samples yielded >1% Cu up to 32% Cu in gossans.

*Stated drill hole intersections are all core length, and true width is expected to be 60% to 95% of core length.

Figure 4: Storm Copper Project, Location Map.



Qualified Person

Michael Dufresne, M.Sc., P.Geol., P.Geo., is a qualified person as defined by National Instrument 43-101 and has reviewed and approved the scientific and technical information in this press release.

About Aston Bay Holdings

Aston Bay is a publicly traded mineral exploration company exploring for high-grade copper and gold deposits in Virginia, USA, and Nunavut, Canada. The Company is led by CEO Thomas Ullrich with exploration in Virginia directed by the Company's advisor, Don Taylor, the 2018 Thayer Lindsley Award winner for his discovery of the Taylor Pb-Zn-Ag Deposit in Arizona. The Company is currently exploring the high-grade Buckingham Gold Vein in central Virginia and is in advanced stages of negotiation on other lands with high-grade copper potential in the area.

The Company is 100% owner of the Storm Project property, which hosts the Storm Copper Project and the Seal Zinc Deposit and has been optioned to American West Metals Limited.
